SPECIFICATIONS

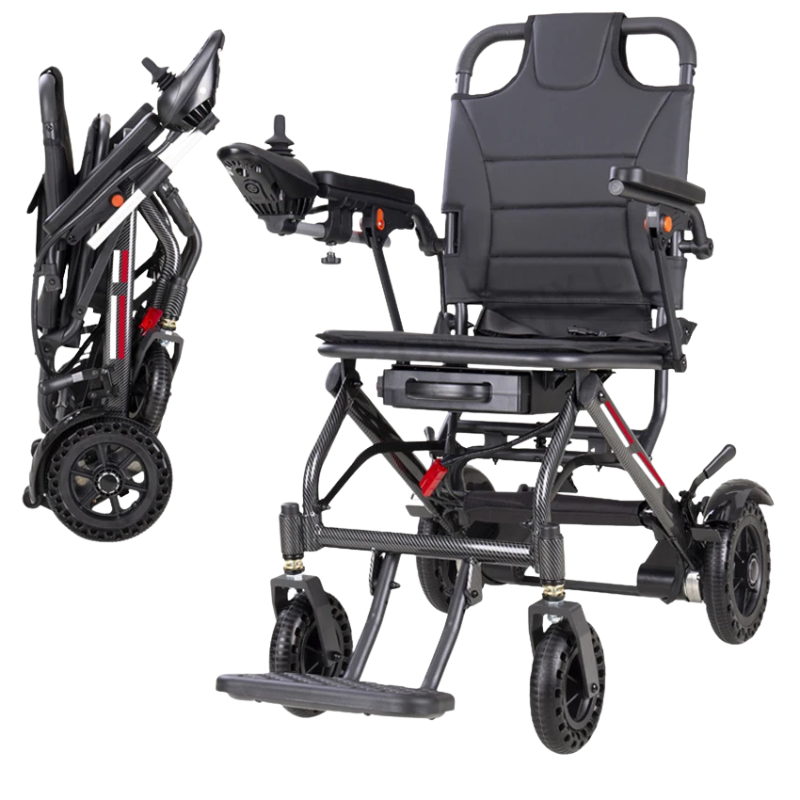

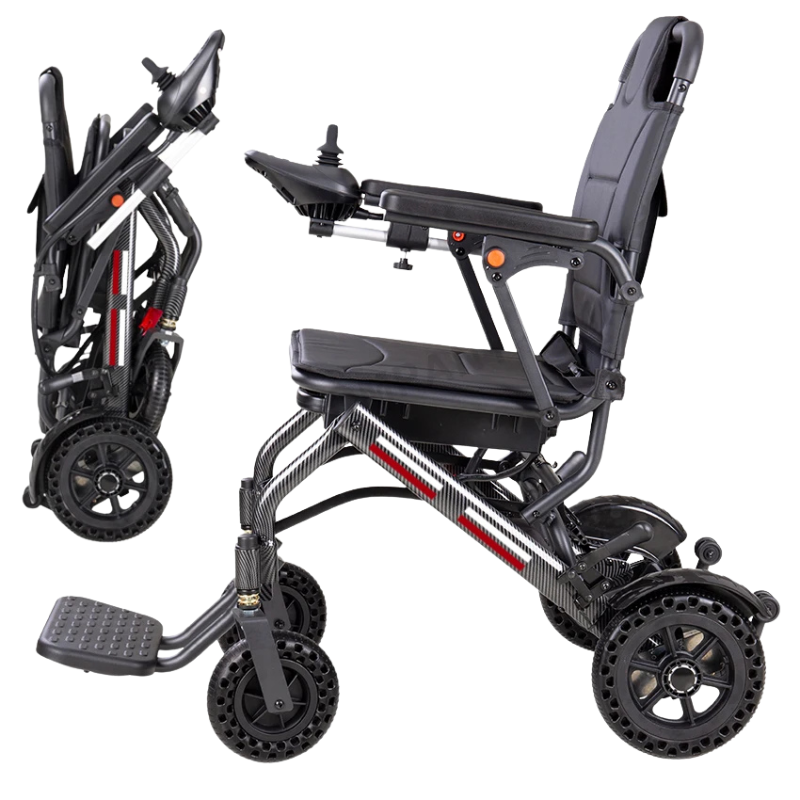

Ultralight Power Wheelchair – Travel-Friendly Electric Wheelchair
Power wheelchair with lithium battery
- 1. Aluminum alloy frame with carbon fiber printed finish
- 2. Leather seat and back cushion
- 3. Dual 180W brush motors, optional rear controller, and wireless Bluetooth controller
- 4. 24V lithium battery: 6Ah / 10Ah / 20Ah
- 5. Quick-release battery
- 6. Extra bumpers for shock absorption for a better mobility experience
- 7. Flip-up armrests and anti-tipper wheels
- 8. Range: 15–20 km

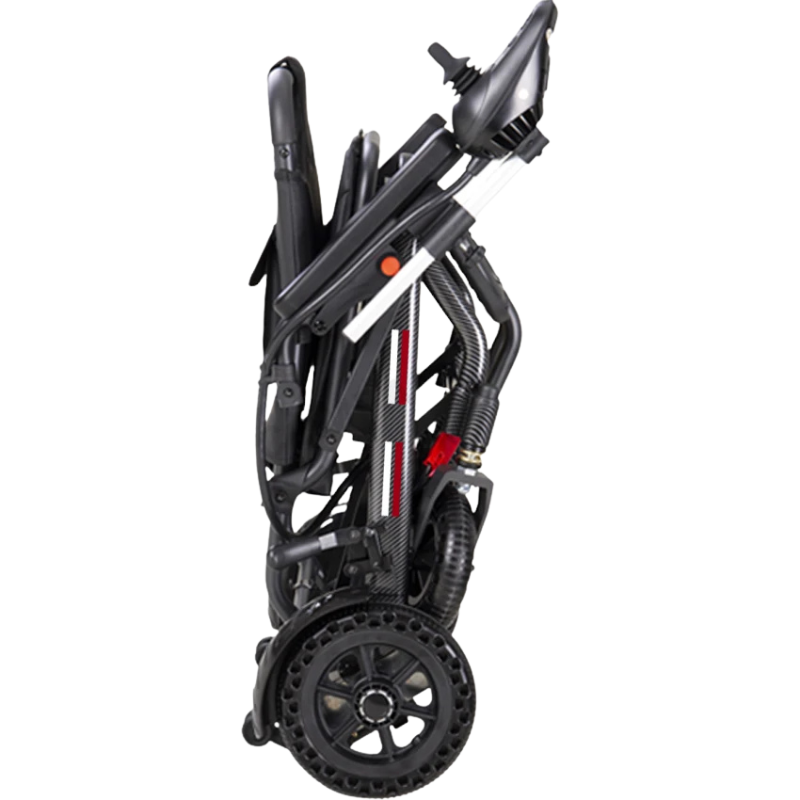

- 9. Compact folded size (full folding)
|
|
|
Endurance
|
15-20 km (depending on user weight and road condition)
|
|
Max Speed
|
6 km/h
|
|
Bearing Capacity
|
100 kgs
|
|
Overall Size
|
94*55*98cm
|
|
Seat Width
|
42cm
|
|
Seat Height
|
52cm
|
|
Seath Depth
|
41cm
|
|
Front Wheel
|
7 inch
|
|
Rear Wheel
|
10 inch
|
|
Motor
|
Brush Motor 180W*2 pcs
|
|
Battery
|
Lithium battery 24V 6 /10 / 20 AH OPTIONS
|
|
Controller
|
China Controller (option PG / Dynamic)
|
|
Climbing Capacity
|
8°
|
|
Brake
|
Electric Brake + Manual Brake
|
|
Frame Color(Optional)
|
Red, Blue, Silver, Black
|
|
Packing size
|
98*56*33 cm
|
|
NW
|
16 kg
|
|
GW
|
18 kg
|
|
Container loading capacity
|
|
20'GP
|
180PCS
|
|
40'HC
|
420PCS
|
Battery: Lithium battery 24V 6ah / 10ah / 20ah options
Endurance: 15-20km
Folded: Foldable
Function: Compact Foldable Wheelchair
Keywords: Trave Friendly
Material: Aluminum with carbon fiber printing
Maximum weight capacity: 100Kg
Model Number: TEW112E
Motor: DC 180W *2Pcs
Origin: China Mainland
Product Name: Folding Lithium Airline Friendly Travel Powered Wheelchair
Speed: 1-6km/h


Aftersale
Wheelchair Frame 3 year
Lead-acid Batteries Half a year
Lithium Batteries 1 year
PG controller 3 years
Domestic controller 1 year
