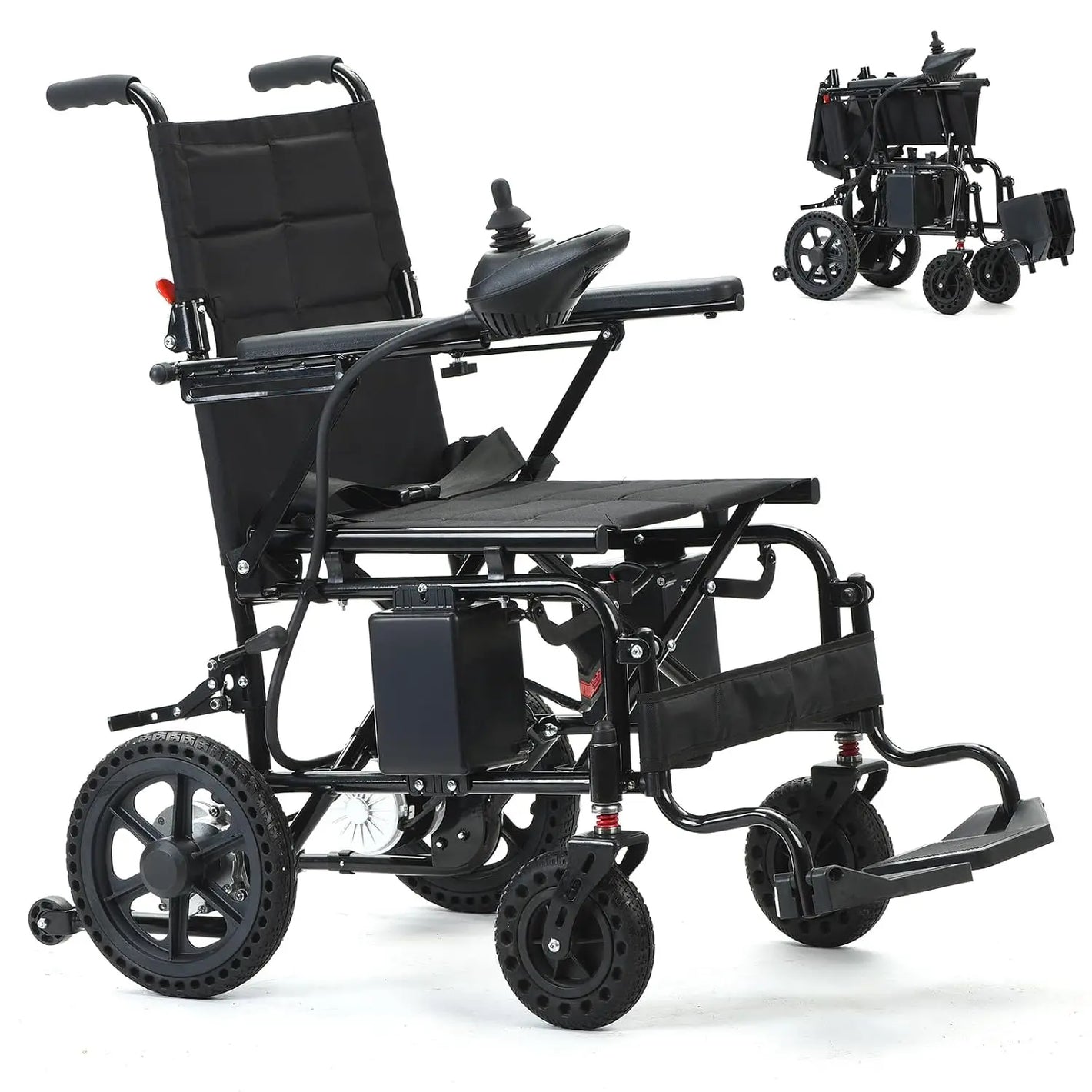

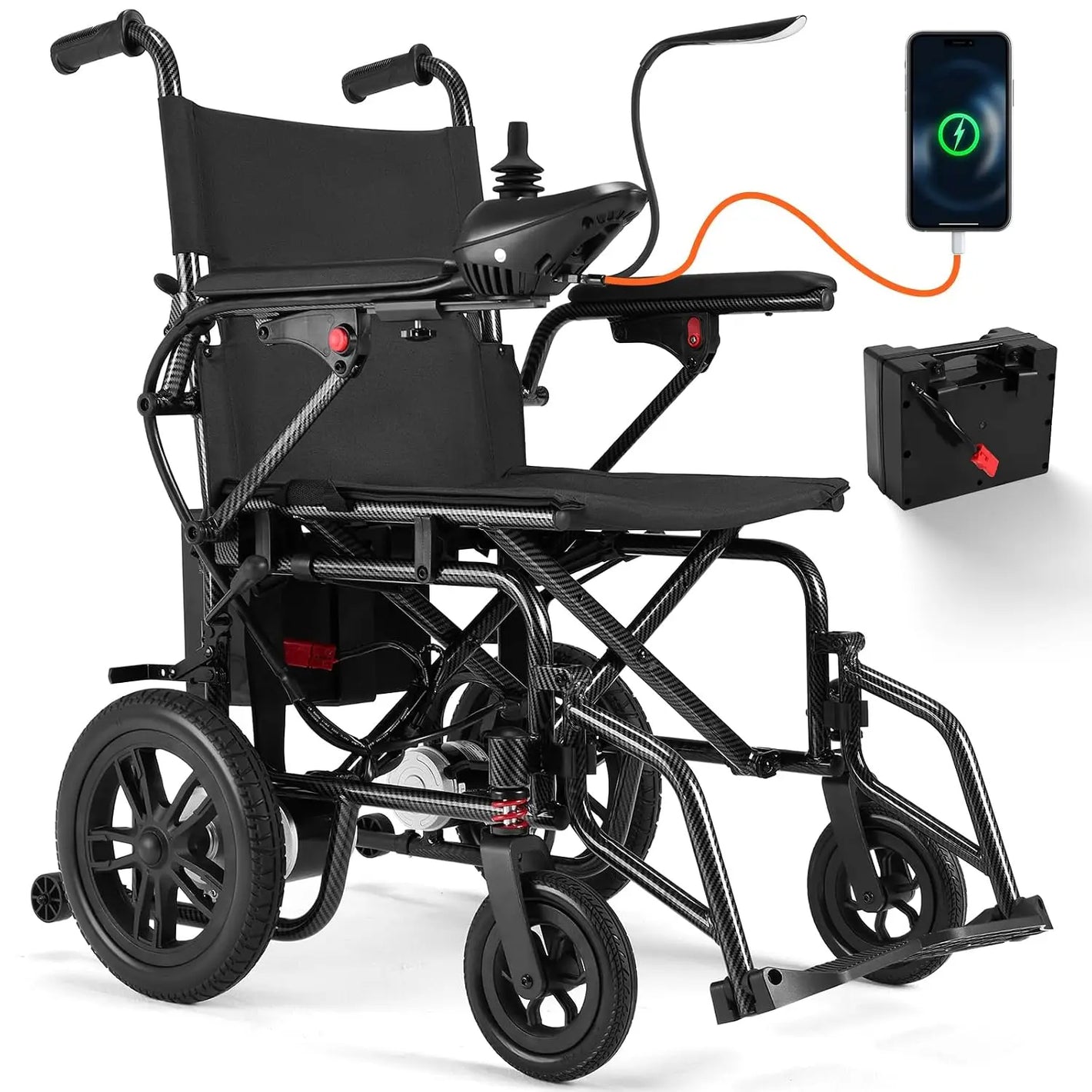

Portable Lightweight Foldable Electric Wheelchair
Designed for convenient everyday mobility, the LT-LEW05 Portable Electric Wheelchair combines a compact folding design with a durable high-strength steel frame, comfortable seating, and easy electronic control. It is suitable for adults and seniors who need a practical powered mobility solution for home, hospital, rehabilitation, shopping, travel, and everyday outings.
The wheelchair folds down to a compact size for easier transportation and storage while offering a comfortable 46.5 cm (18.3 in) wide seat, supportive backrest, and a combination of solid front and pneumatic rear tires for everyday mobility.
Key Features
-
Foldable & Portable Design – Folds from approximately 100.5 × 56 × 89 cm to 77.5 × 31 × 71.5 cm, making storage and transportation more convenient.
-
High-Strength Steel Frame – Constructed with a durable steel-tube main frame and finished with an electrostatic resin powder coating for additional surface protection.
-
Comfortable Pressure-Relieving Seating – Nylon fabric combined with 3D pressure-relieving fabric helps provide a more comfortable seating surface for extended use.
-
Electronic Brake Controller – Provides convenient powered control and responsive braking during everyday operation.
-
8-Inch Solid Front Tires – Non-inflatable front tires reduce routine tire maintenance and provide dependable everyday performance.
-
12-Inch Pneumatic Rear Tires – Larger air-filled rear tires help provide a smoother ride over different surfaces.
-
Spacious Seating Area – Approximately 46.5 cm wide × 42 cm deep, providing comfortable room for the user.
-
Compact Storage Profile – The narrow folded width of approximately 31 cm (12.2 in) makes the chair easier to store when not in use.
-
Up to 100 kg / 220 lb Load Capacity – Designed to accommodate a wide range of adult users.
-
Online Technical Support – Supplier specifications indicate online technical support and a 1-year warranty.
Product Specifications
| Specification |
Details |
| Product Name |
Portable Electric Wheelchair |
| Model |
LT-LEW05 |
| Frame Material |
High-Strength Steel Tube |
| Surface Treatment |
Electrostatic Resin Powder Coating |
| Overall Dimensions |
1005 × 560 × 890 mm / 39.6 × 22.0 × 35.0 in |
| Folded Dimensions |
775 × 310 × 715 mm / 30.5 × 12.2 × 28.1 in |
| Seat Dimensions |
465 mm W × 420 mm D × 480 mm H |
| Seat Width |
Approx. 18.3 in |
| Seat Depth |
Approx. 16.5 in |
| Seat Height |
Approx. 18.9 in |
| Armrest/Handrail Height* |
715 mm |
| Front Wheels |
8-inch Non-Inflatable Tires |
| Rear Wheels |
12-inch Pneumatic Tires |
| Controller |
Electronic Brake Controller |
| Load Capacity |
100 kg / 220 lb |
| Net Weight* |
Approx. 28 kg / 61.7 lb including listed battery configuration |
| Folding Design |
Yes |
| Application |
Home, Hospital, Travel & Everyday Mobility |
| Warranty |
1 Year |
Comfort for Everyday Mobility
The seat and backrest use nylon fabric with 3D pressure-relieving material, helping create a supportive seating environment for longer periods of use. The combination of an 8-inch solid front tire and larger 12-inch pneumatic rear tire provides a practical balance of maneuverability and ride comfort.
Easy to Fold, Store & Transport
When not in use, the LT-LEW05 folds to approximately 30.5 × 12.2 × 28.1 inches, significantly reducing its storage footprint. This makes it a convenient option for users who need to store their wheelchair at home or transport it in a suitable vehicle.
Ideal For
This portable electric wheelchair is suitable for daily mobility, home use, hospitals, rehabilitation environments, shopping, appointments, and travel, providing users with a practical combination of comfort, portability, and powered mobility.
