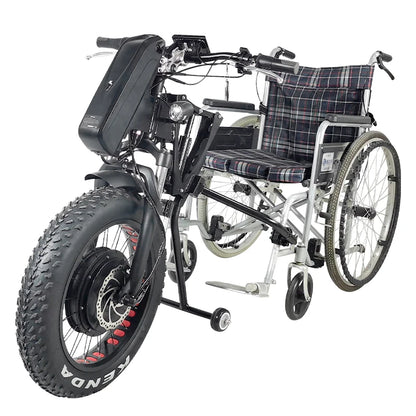

Lightweight 20-Inch 1200W Adjustable Electric Wheelchair Kit

Electric Wheelchair Handcycle Conversion Kit – 250W–500W Brushless Motor, 36V/48V Lithium Battery

• Transform a compatible manual wheelchair into a powered mobility solution with this Electric Wheelchair Handcycle Conversion Kit.

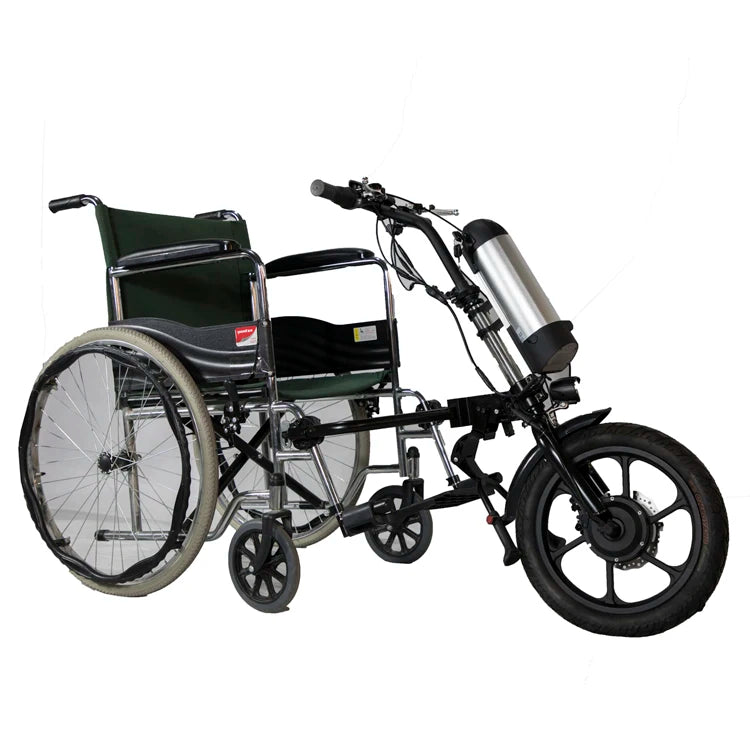

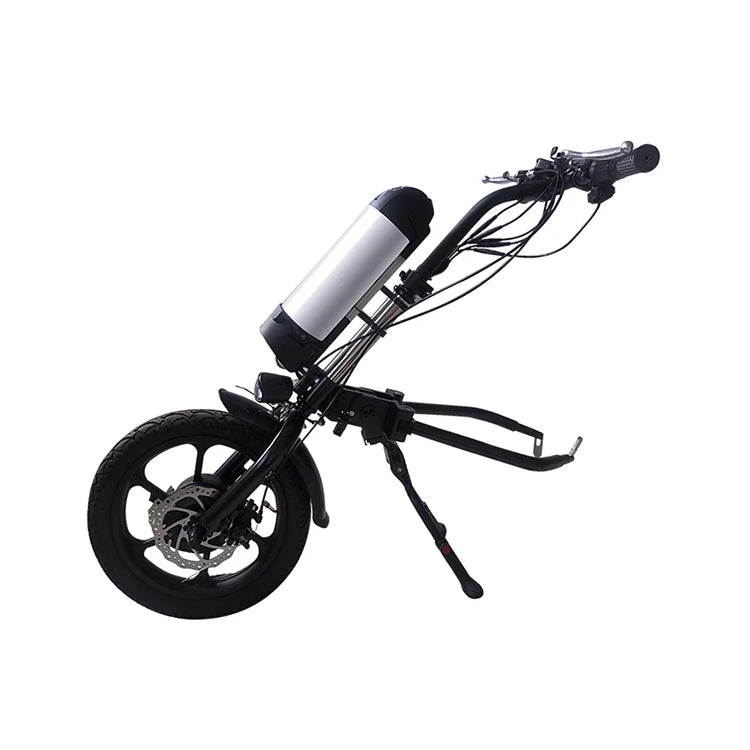

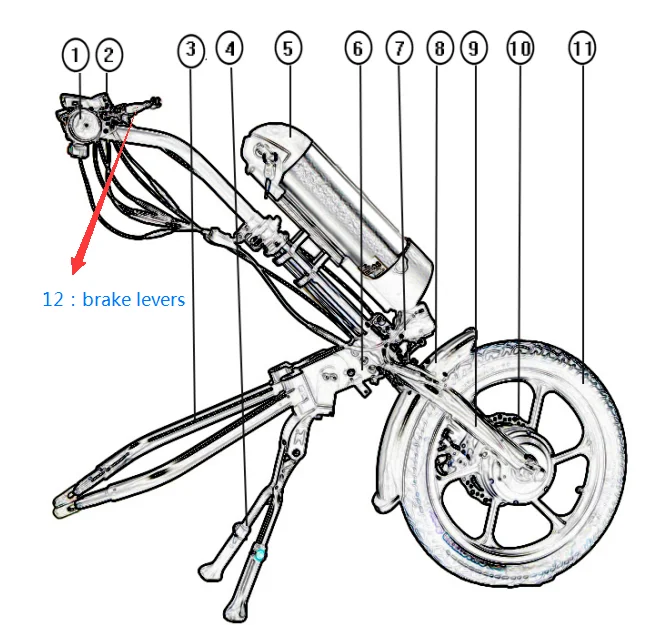

• Designed to attach to the front of a compatible manual wheelchair, this system adds a powered front wheel, brushless motor, lithium battery, handlebar steering, throttle control, LCD display, and braking controls—providing electric assistance without requiring the purchase of a completely new powered wheelchair.
• With multiple 12-inch and 16-inch wheel configurations, 250W–500W motor options, and 36V/48V lithium batteries, the system can be configured according to individual mobility requirements.

Key Features

Convert a Manual Wheelchair to Electric Power

Instead of replacing your existing wheelchair, this attachment is designed to connect to a compatible manual wheelchair and provide powered front-wheel propulsion.

Once properly installed, the combination of:

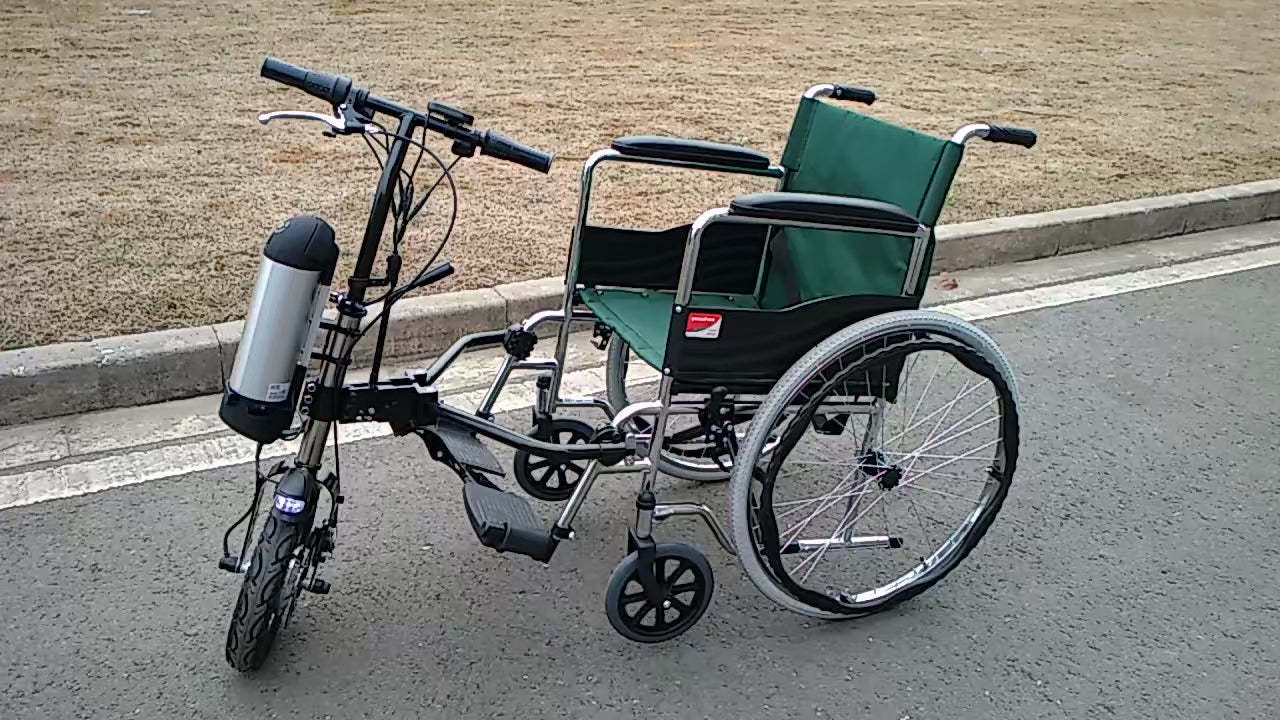

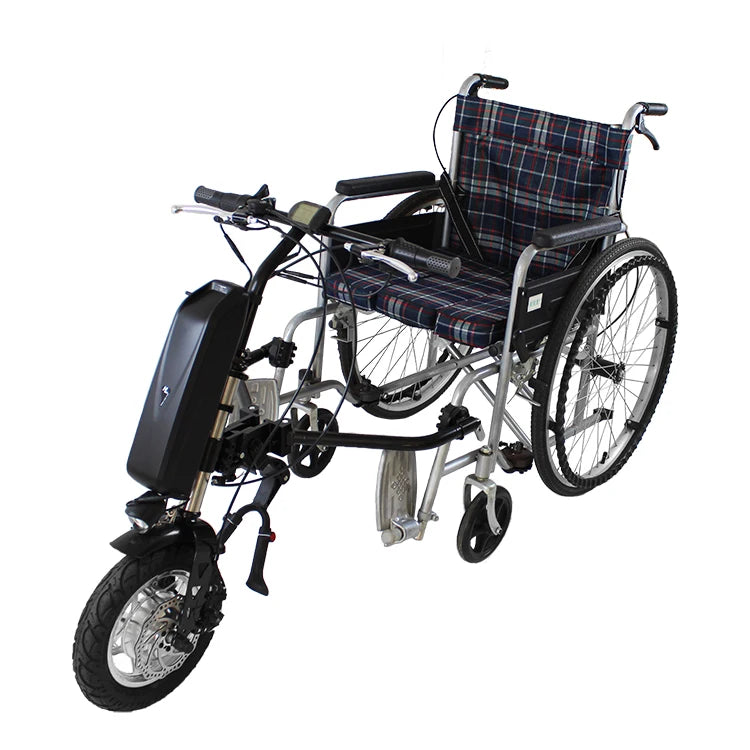

Manual Wheelchair + Powered Handcycle Attachment

creates a powered mobility setup that can be detached when electric assistance is not required.

Powerful Brushless Motor Options

Choose from several motor configurations depending on the selected wheel size:

250W Geared Brushless Motor
350W Geared Brushless Motor
500W Gearless Brushless Motor

Brushless motor technology provides efficient electric propulsion while reducing some of the mechanical wear associated with traditional brushed motors.

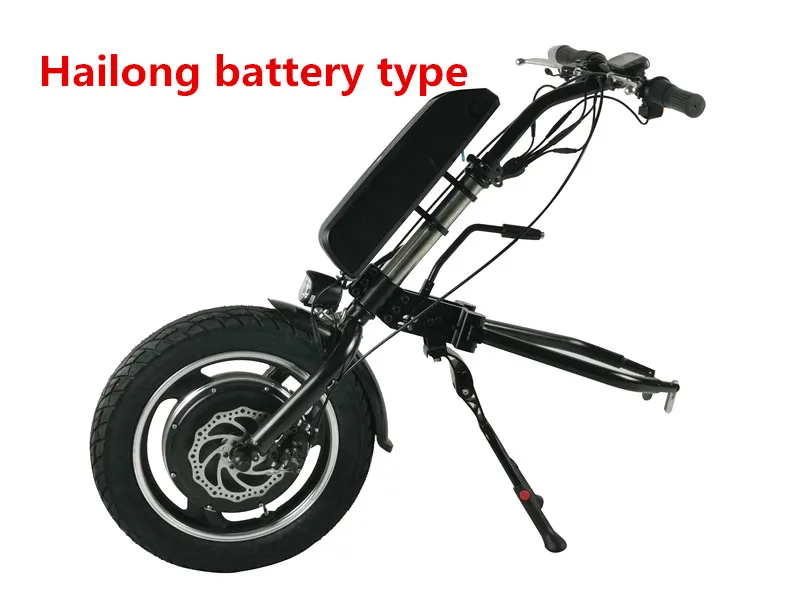

36V & 48V Lithium Battery Options

Multiple lithium-battery configurations are available, including:

36V 8.8Ah
36V 13Ah
48V 10.4Ah
48V 13Ah

Battery availability depends on the selected configuration.

Up to 25 KM / 15.5 Miles Listed Range

The manufacturer lists a maximum travel range of approximately:

25 km / 15.5 miles

Actual range will depend on the motor and battery configuration, rider weight, wheelchair weight, terrain, incline, temperature, tire pressure, speed, and battery condition.

Up to 20 KM/H Listed Maximum Speed

The manufacturer lists a maximum speed of approximately:

20 km/h / 12.4 mph

The rider should always select an appropriate speed for the environment, surface conditions, wheelchair configuration, and their ability to safely control the system.

LCD Display

The integrated LCD display provides convenient access to operating information while riding.

Combined with handlebar-mounted controls, the system creates an intuitive powered handcycle-style driving experience.

Thumb Throttle Control

The system uses a thumb-operated throttle, allowing the rider to control motor power directly from the handlebar.

This makes acceleration conveniently accessible without requiring conventional wheelchair push-rim propulsion.

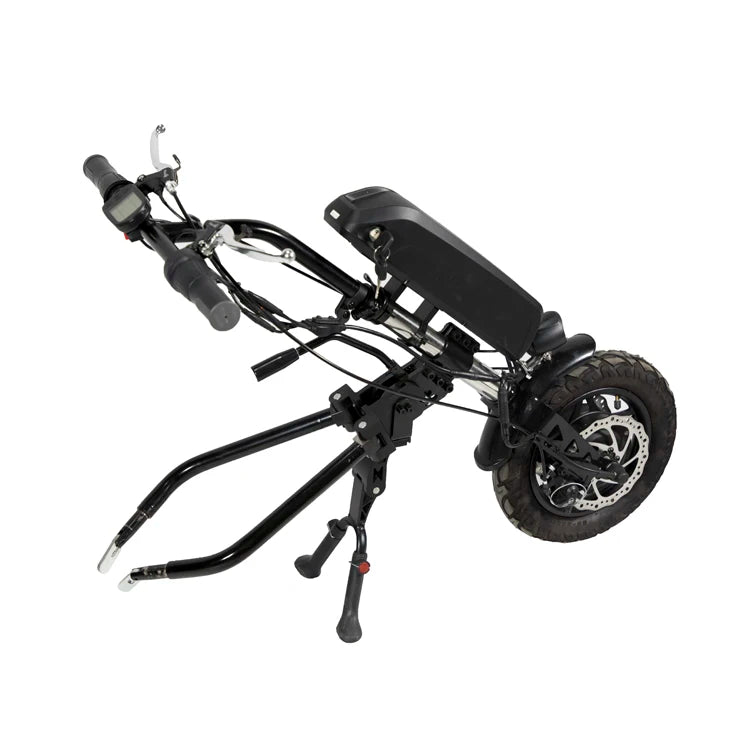

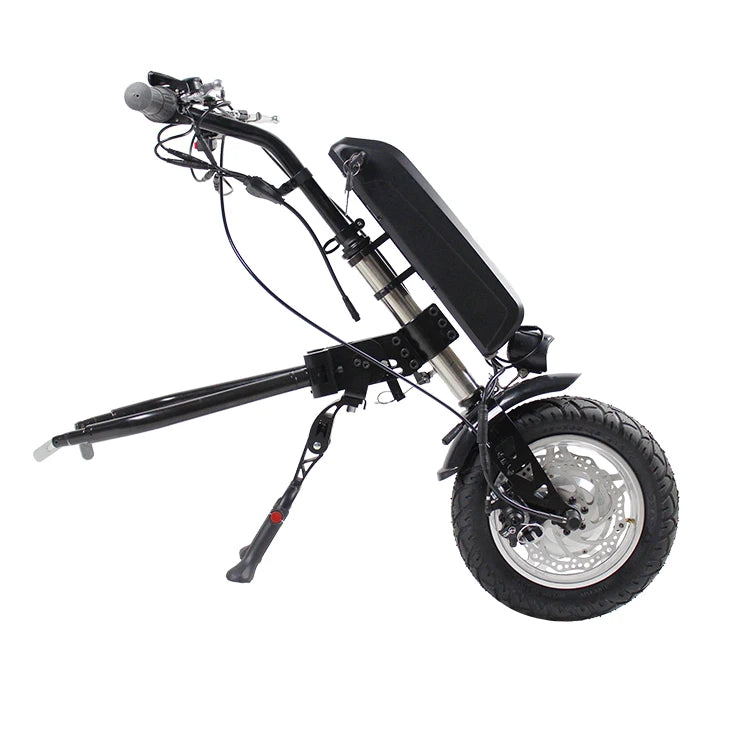

12" & 16" Wheel Options

Different front-wheel sizes are available to suit various configurations.

12-inch: available with 250W or 350W geared motor options.

16-inch: available with 250W or 350W geared motors, with a 500W gearless option also listed by the supplier.

Detachable Conversion Design

One of the biggest advantages of a wheelchair handcycle attachment is flexibility.

Rather than permanently converting the wheelchair, the powered attachment is designed to be removable, allowing customers to retain the basic functionality of their compatible manual wheelchair.

Product Specifications

Specification	Details
Product Type	Electric Wheelchair Handcycle / Drive Conversion Kit
Motor Type	Brushless
Motor Options	250W / 350W / 500W
Voltage Options	36V / 48V
Battery Type	Lithium
Battery Options	36V 8.8Ah / 36V 13Ah / 48V 10.4Ah / 48V 13Ah
Wheel Options	12" / 16"

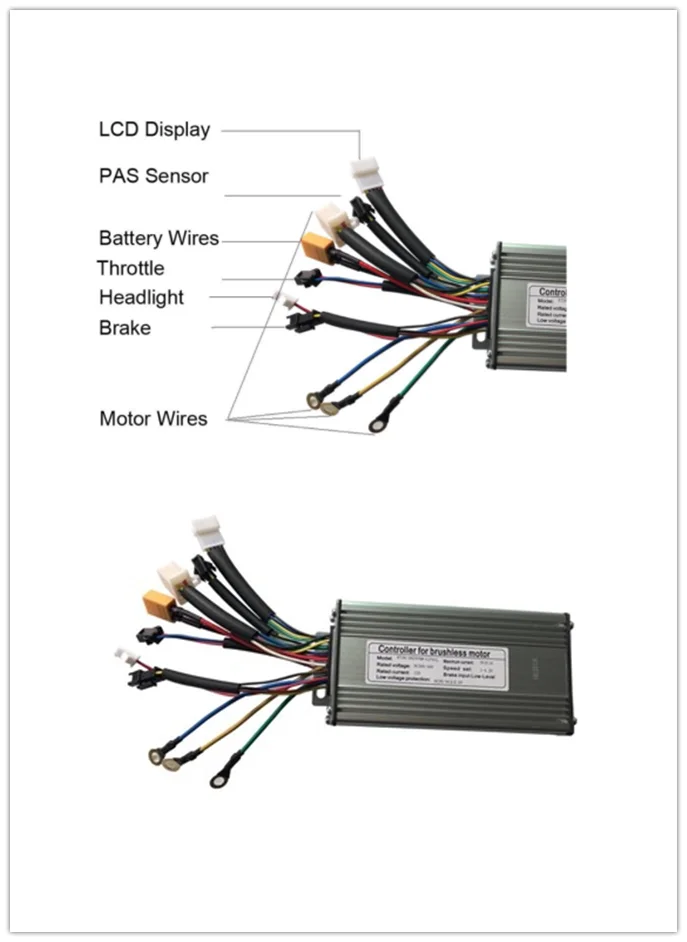

Controller	36V / 48V, 13–17A
Throttle	Thumb Throttle
Display	LCD
Maximum Listed Range	Approx. 25 km / 15.5 miles
Maximum Listed Speed	Approx. 20 km/h / 12.4 mph
Maximum Listed Load	100 kg / 220 lbs
Gross Weight	Approx. 25 kg / 55 lbs
Package Size	810 × 220 × 460 mm
Listed Warranty	1 Year

Motor & Wheel Configurations

Wheel Size	Available Motor Configurations
12 inch	36V/48V 250W Geared • 36V/48V 350W Geared
16 inch	36V/48V 250W Geared • 36V/48V 350W Geared • 36V/48V 500W Gearless

The appropriate configuration depends on wheelchair compatibility, intended use, user weight, terrain, and desired performance.

A Cost-Effective Alternative to a Complete Power Wheelchair

For customers who already own a suitable manual wheelchair, a powered handcycle attachment can provide another option besides purchasing a complete electric wheelchair.

The detachable design allows customers to add electric propulsion while continuing to use their existing compatible wheelchair.

This can be particularly useful for customers looking for:

Powered outdoor mobility • Longer-distance assistance • Reduced manual propulsion • A removable electric-drive solution • Greater flexibility from an existing wheelchair

⚠️ Compatibility Confirmation Required
Please contact us before ordering and provide the brand/model of your wheelchair along with clear photos and relevant frame measurements. We will help confirm compatibility with the selected handcycle attachment.

That could save you from expensive returns on a $1,000+ product.

Important Safety Information

Maximum speed, range, climbing performance and handling will vary according to the selected motor/battery configuration, wheelchair compatibility, combined user and equipment weight, road surface, incline, weather conditions, tire pressure, and battery condition.

Customers should use appropriate speeds and exercise additional caution on slopes, uneven surfaces, wet surfaces, pedestrian areas, and around obstacles.

What's Included

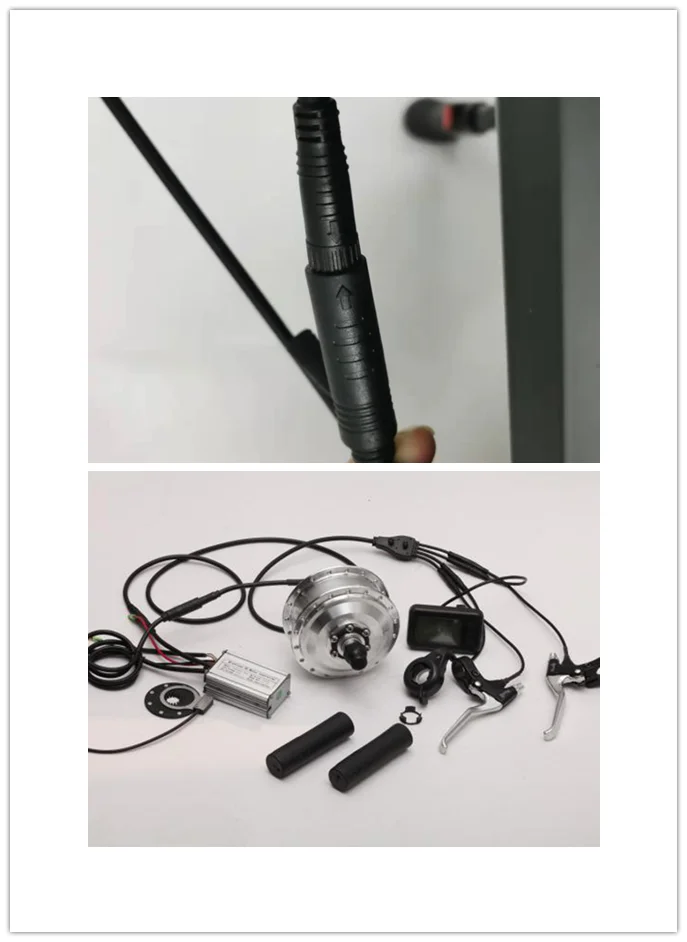

Package contents depend on the selected variant and may include the powered handcycle/drive unit, motorized front wheel, lithium battery, LCD/control system, charger, mounting hardware, and applicable accessories.

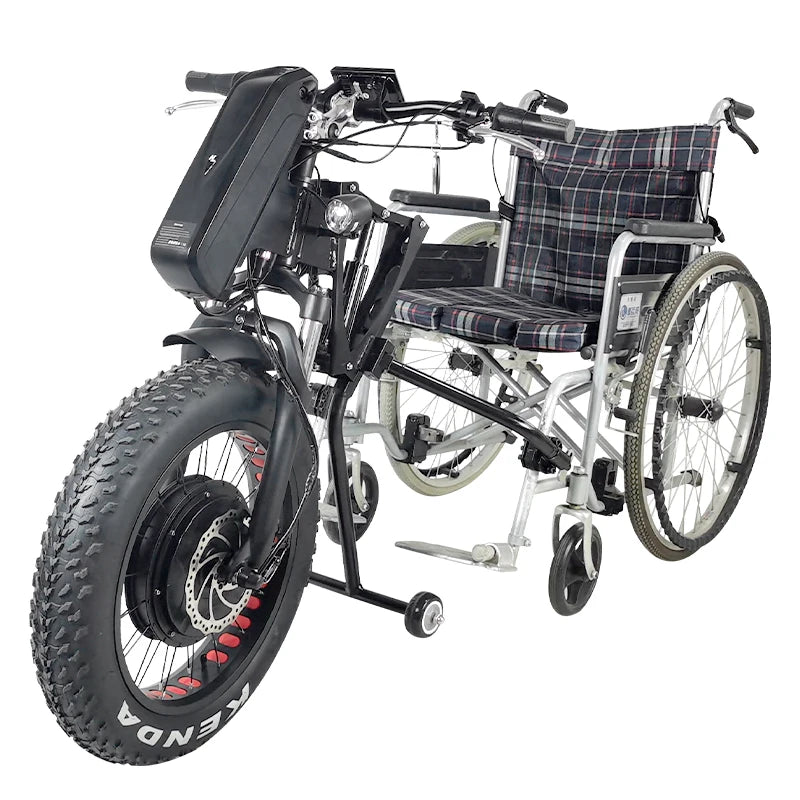

The manual wheelchair shown in demonstration images may not be included. Please verify the selected package contents before ordering.
